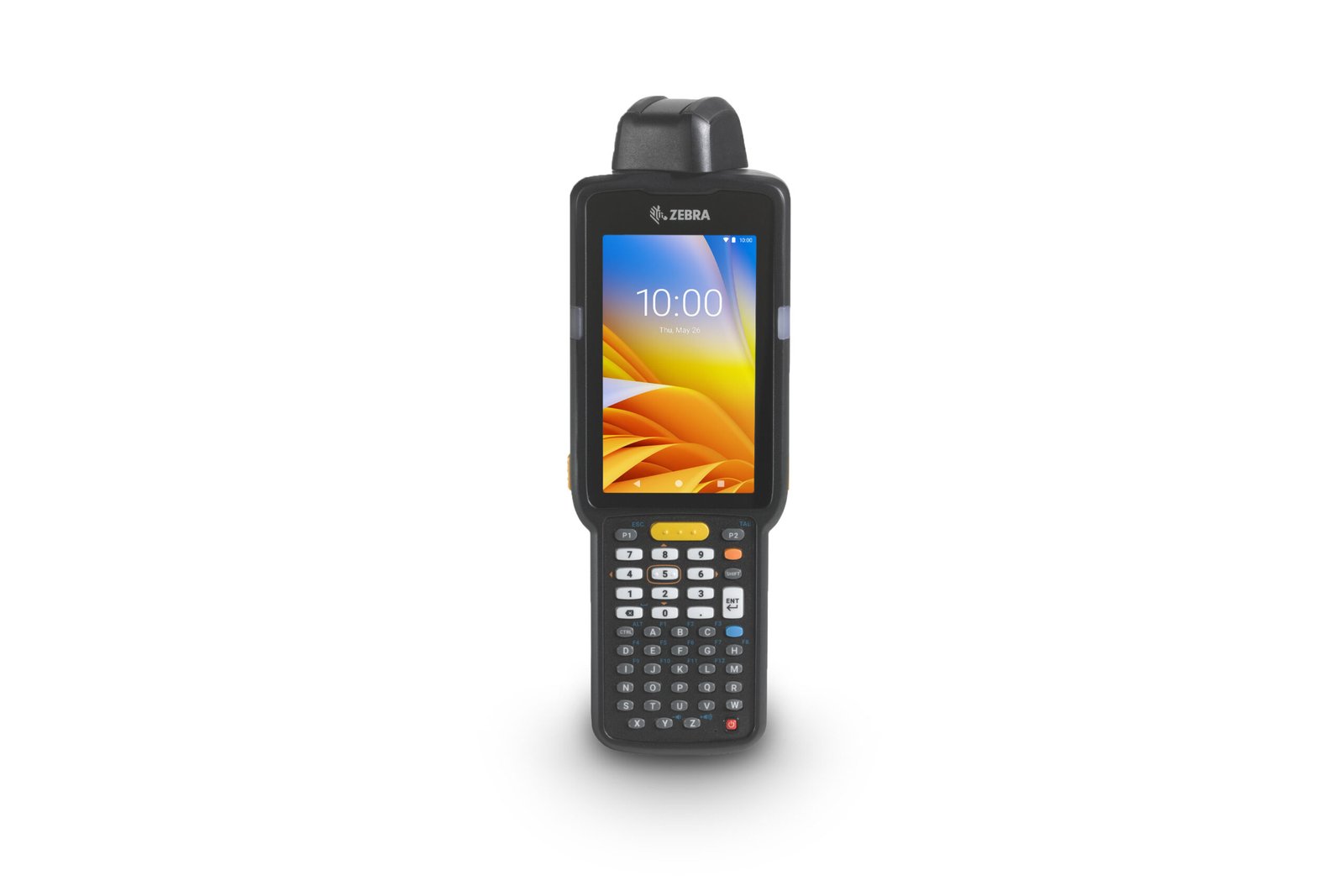

MC33xx Series Mobile Computer
The Easy Way to Power Your Business With Advanced Android Mobile Computing
The highly successful MC33X Series is the lightweight, versatile, key-based Android handheld computer that fits right at home in the warehouse, back of the store or the manufacturing floor.
Description
MC3300x Specifications
Physical Characteristics
| Dimensions | MC3300x Straight Shooter (45° Scan and 0° Scan): 7.96 in. L x 2.94 in. W x 1.35 in. D 202.2 mm L x 74.7 mm W x 34.5 mm DMC3300x Turret/Rotating Head: 8.79 in. L x 2.94 in. W x 1.35 in. D 223.4 mm L x 74.7 mm W x 34.5 mm D MC3300x Gun/Pistol: |
| Weight | MC3300x Straight Shooter (0° Scan): 15.7 oz./445 gMC3300x Turret/Rotating Head: 16.2 oz./460 g MC3300x Gun/Pistol: MC3300x (45° Scan): |
| Display | 4 in. WVGA (800 x 480), LED backlight, color display |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately) |
| Power | All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence
Backwards compatibility with MC3300 2740mAh |
| Expansion Slot | User accessible MicroSD with 32GB SDHC and up to 512GB SDXC |
| Network Connections | USB 2.0 High Speed OTG (Host and Client) WLAN (WiFi), WPAN (Bluetooth) |
| Notification | Audible tone, multi-color LEDs |
| Keypad | Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key) |
| Voice | PTT Express and Workforce Connect PTT Pro (Internal speaker, microphone and Bluetooth wireless headset support) |
| Audio | Built-in speaker and microphone |
| Buttons | Two programmable side scan keys |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core, 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Android Enterprise Recommended (AER) | Android Enterprise Recommended (AER) |
| Memory | Worldwide: 4 GB RAM/32 GB Flash Memory China only: 4 GB RAM/16 GB Flash Memory |
| Security | Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% RH (Non-condensing) |
| Drop Specifications | Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G |
| Tumble Specifications | 3,000 3.3 ft. /1.0 m tumbles; meets and exceeds IEC tumble specification |
| Sealing | IP64 per applicable IEC sealing specifications |
| Vibration | 4g’s PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/- 15kV air, +/-8kV contact discharge +/-8kV indirect contact discharge |
Interactive Sensor Technology (IST)
| Motion Sensors |
3-axis accelerometer with MEMS gyroscope |
Data Capture
| Scanning | MC3300x Brick/Straight Shooter (0° Scan): SE965 1D, SE4720/SE4770 2D, SE4850 ERIMC3300x Turret/Rotating Head: SE965 1D Laser MC3300x Gun/Pistol: MC3300x (45° Scan): |
| Rear Camera | 13MP color camera with LED flash (optional on Straight Shooter and Turret configurations only) |
| NFC | ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support |
Wireless LAN
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v1/w/mc1; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels (depending on Regulatory) | Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
| Certifications | WFA: 802.11n, 802.11ac, PMF, Wi-Fi Direct, WMM-PS, WMM-AC, Voice Enterprise |
| Fast Roam | 802.11r (Over-The-Air); PMKID caching; Cisco CCKM; OKC |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
Regulatory
| EMI/EMC | FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B |
| Electrical Safety | UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1 |
| RF Exposure | EU: EN 50364, EN 62369-1, EN 50566, EN 62311 USA: FCC Part 2, 1093 OET Bulletin 65 Supplement ‘C’ Canada: RSS-102 |
Environmental Compliance
| • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit: www.zebra.com/environment |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the MC3300x is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. |
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. Zebra VisibilityIQTM Services: Improve device value with Zebra’s optional VisibilityIQ™ Services. VisibilityIQ gives the data-driven, actionable insight to get the most from your devices, workers and daily tasks. VisibilityIQ™ Foresight aggregates big data onto a single, color-coded, cloud-based pane of glass, translating it into actionable insight to streamline workflow. VisibilityIQ™ DNA provides a view into key DNA tools, and VisibilityIQ™ OneCare® cloud-based dashboard offers visibility into repairs, tech support, software security status and more. |
Footnotes
| For details related to Common Criteria support, please visit: www.zebra.com/commoncriteria |
