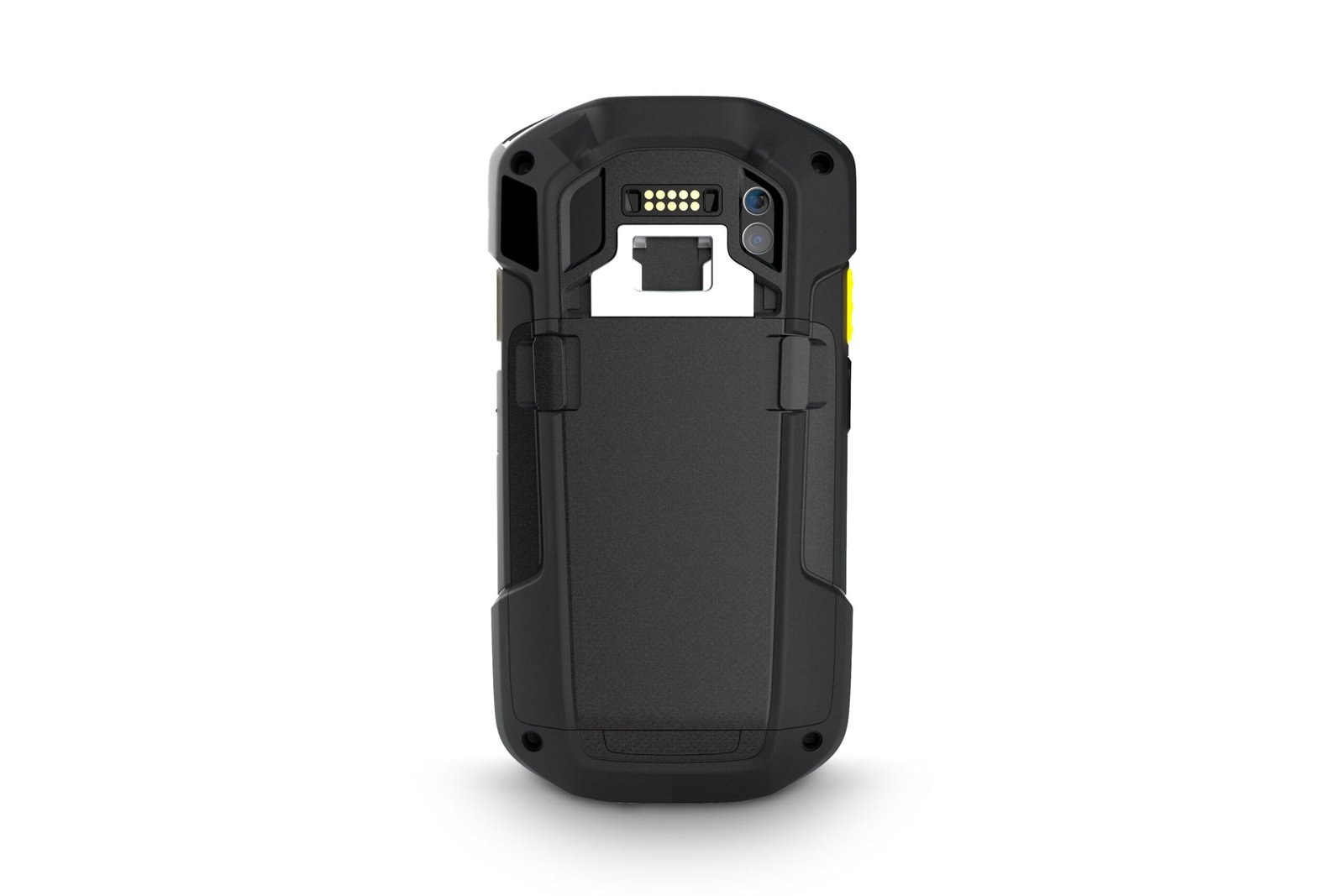

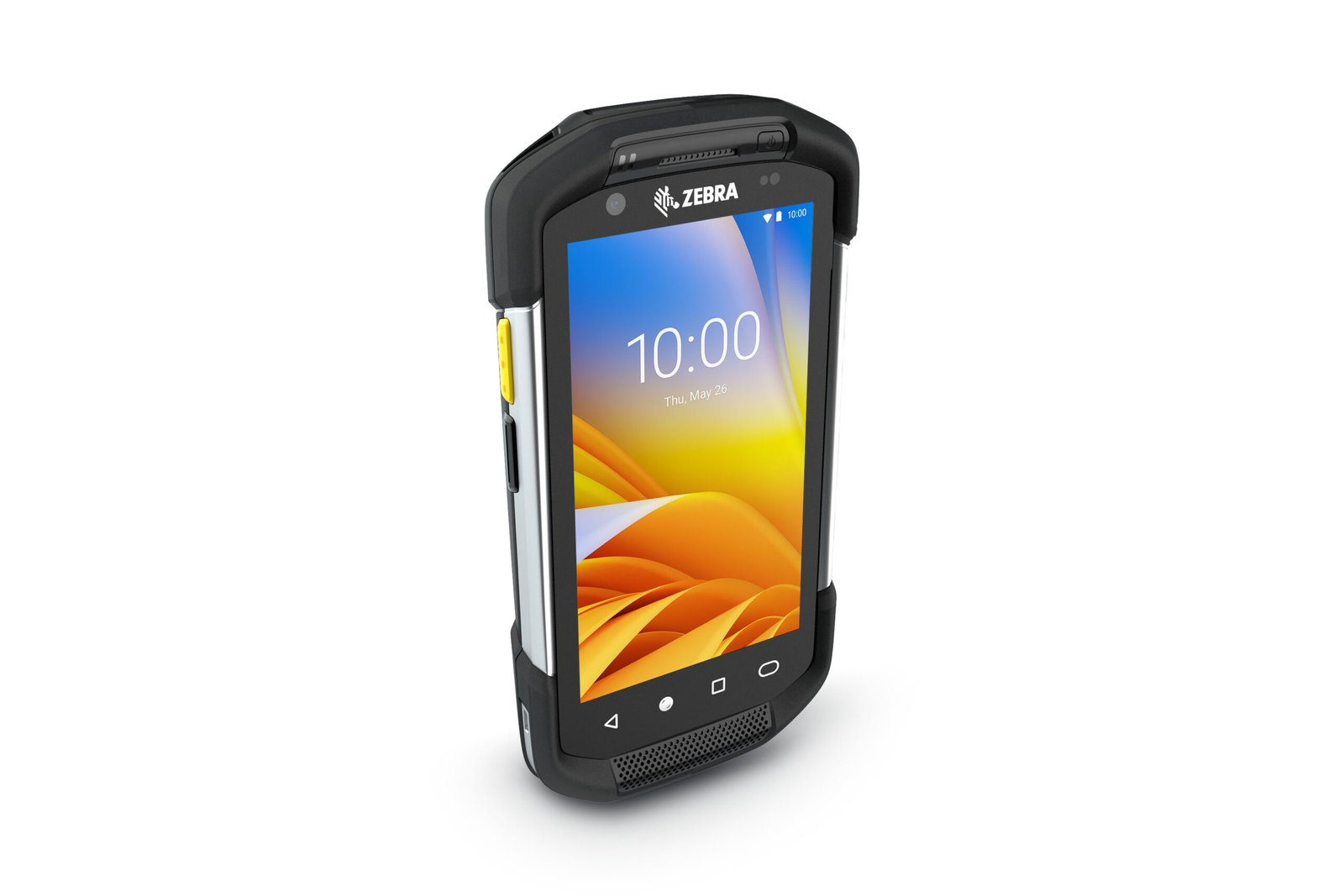

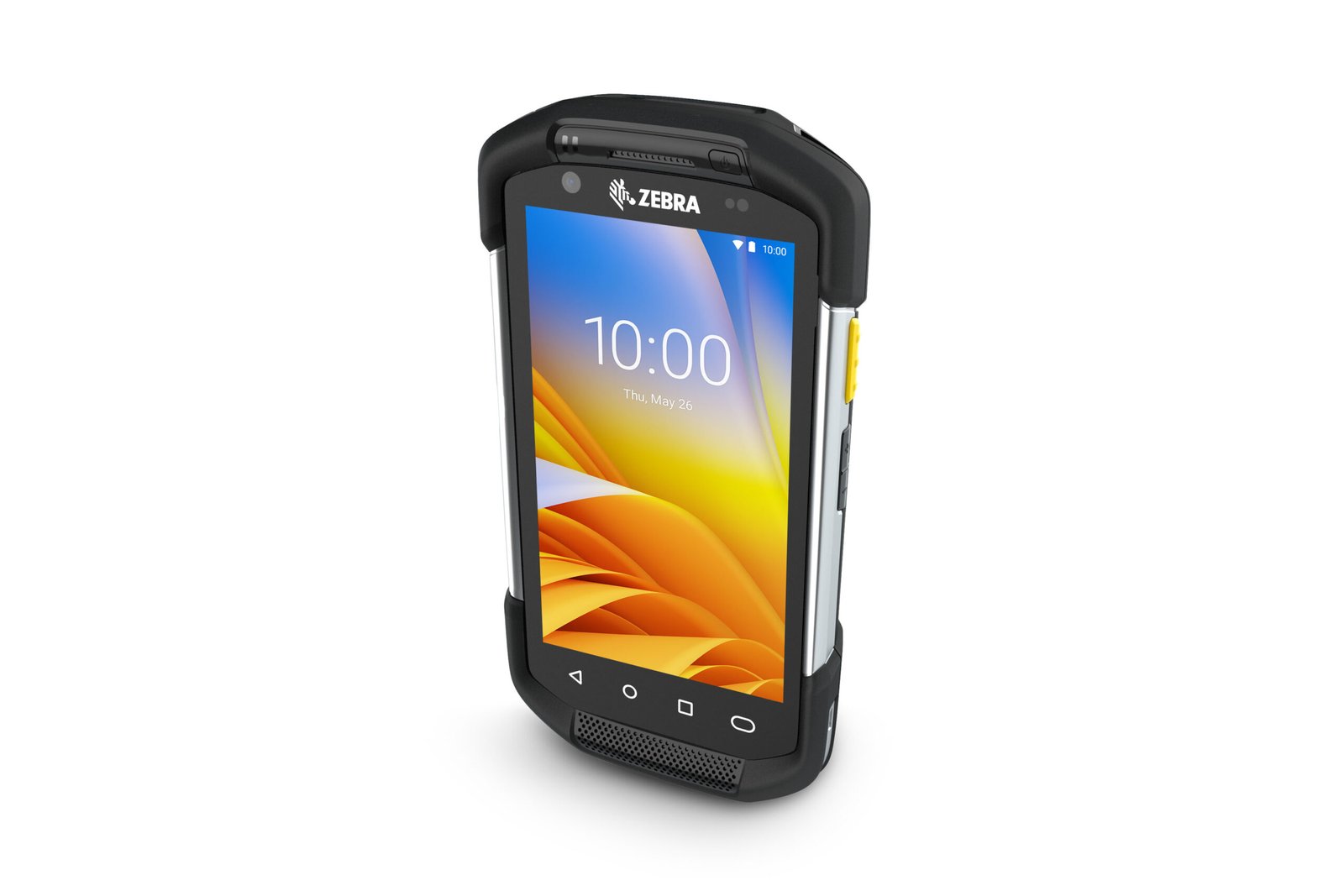

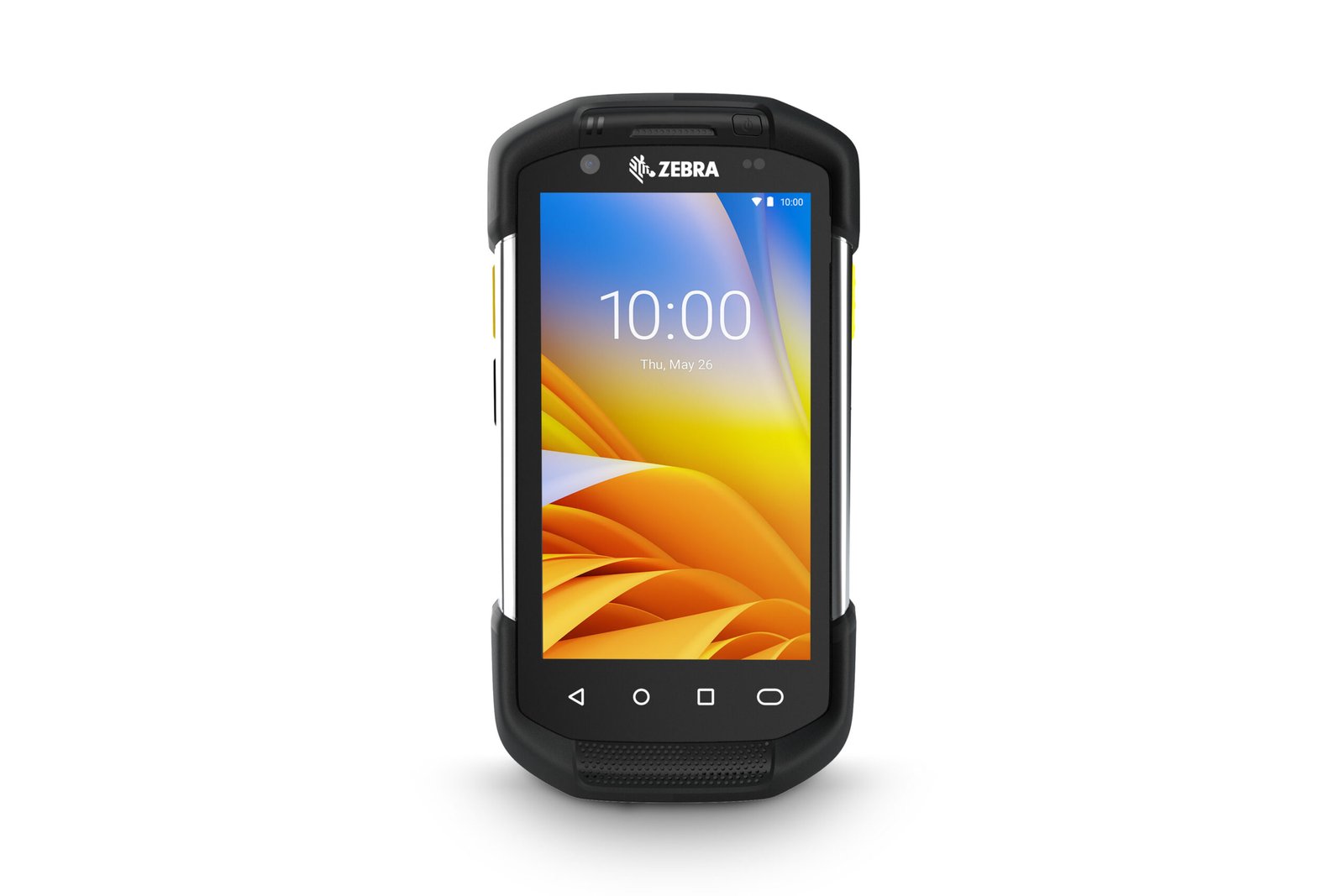

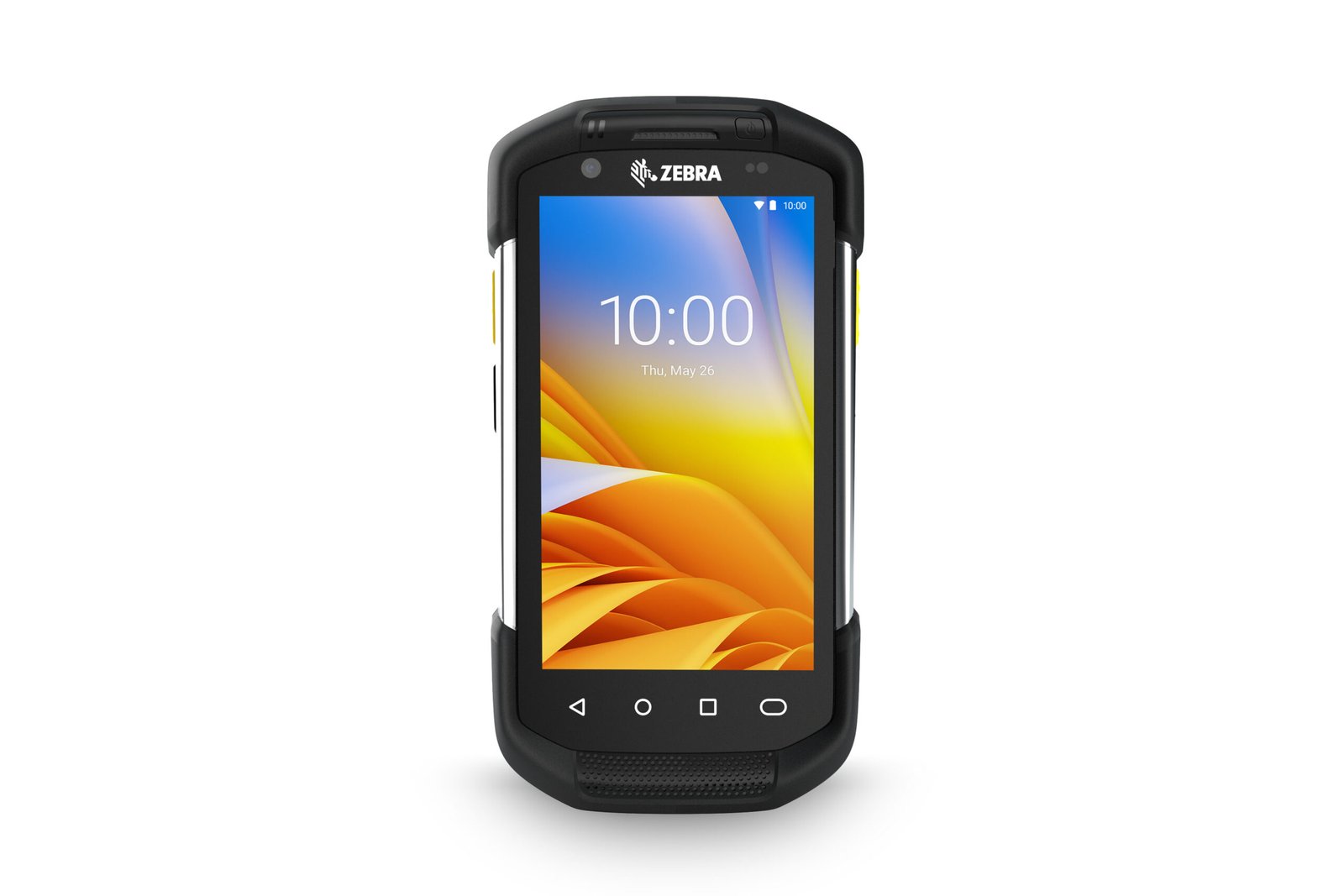

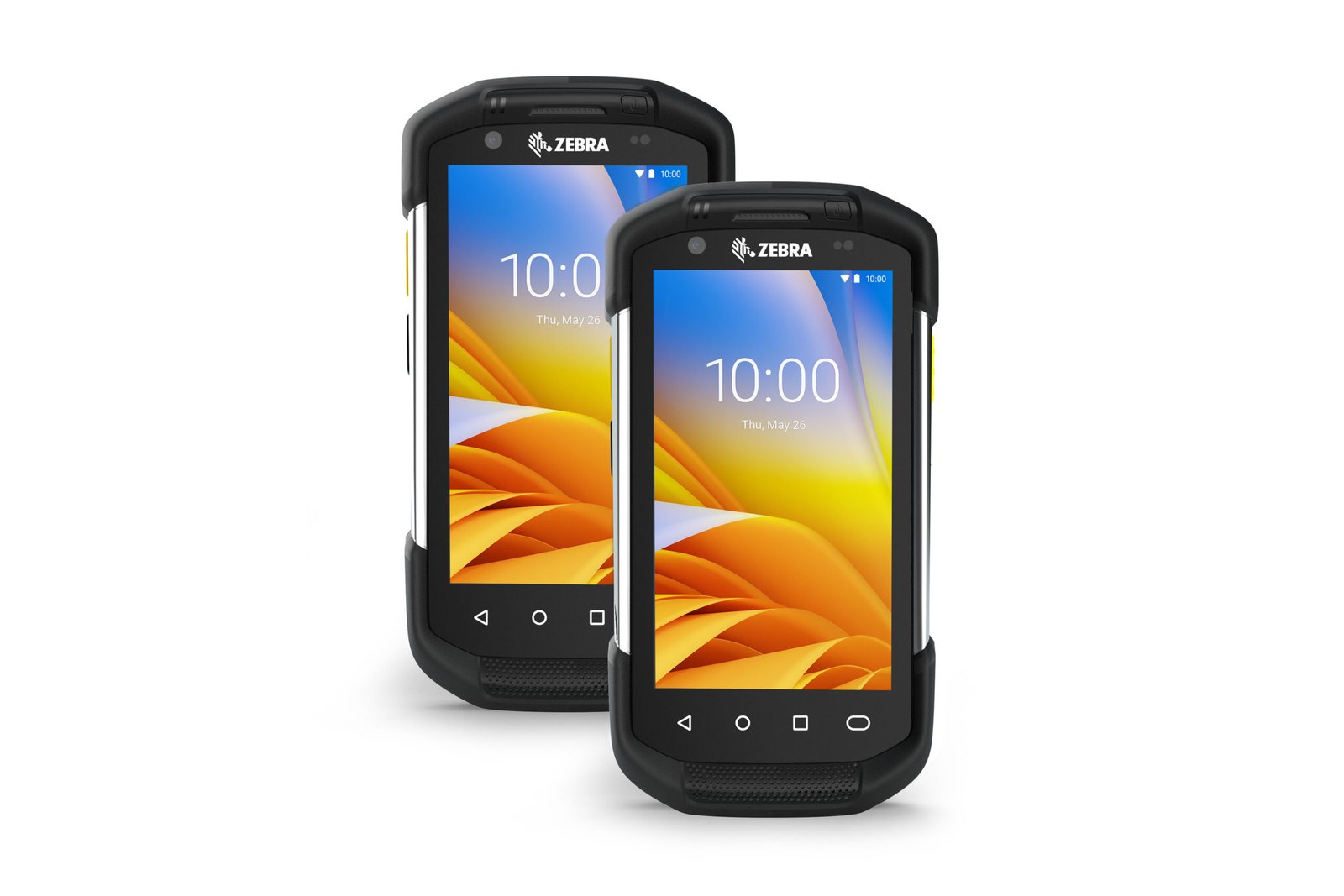

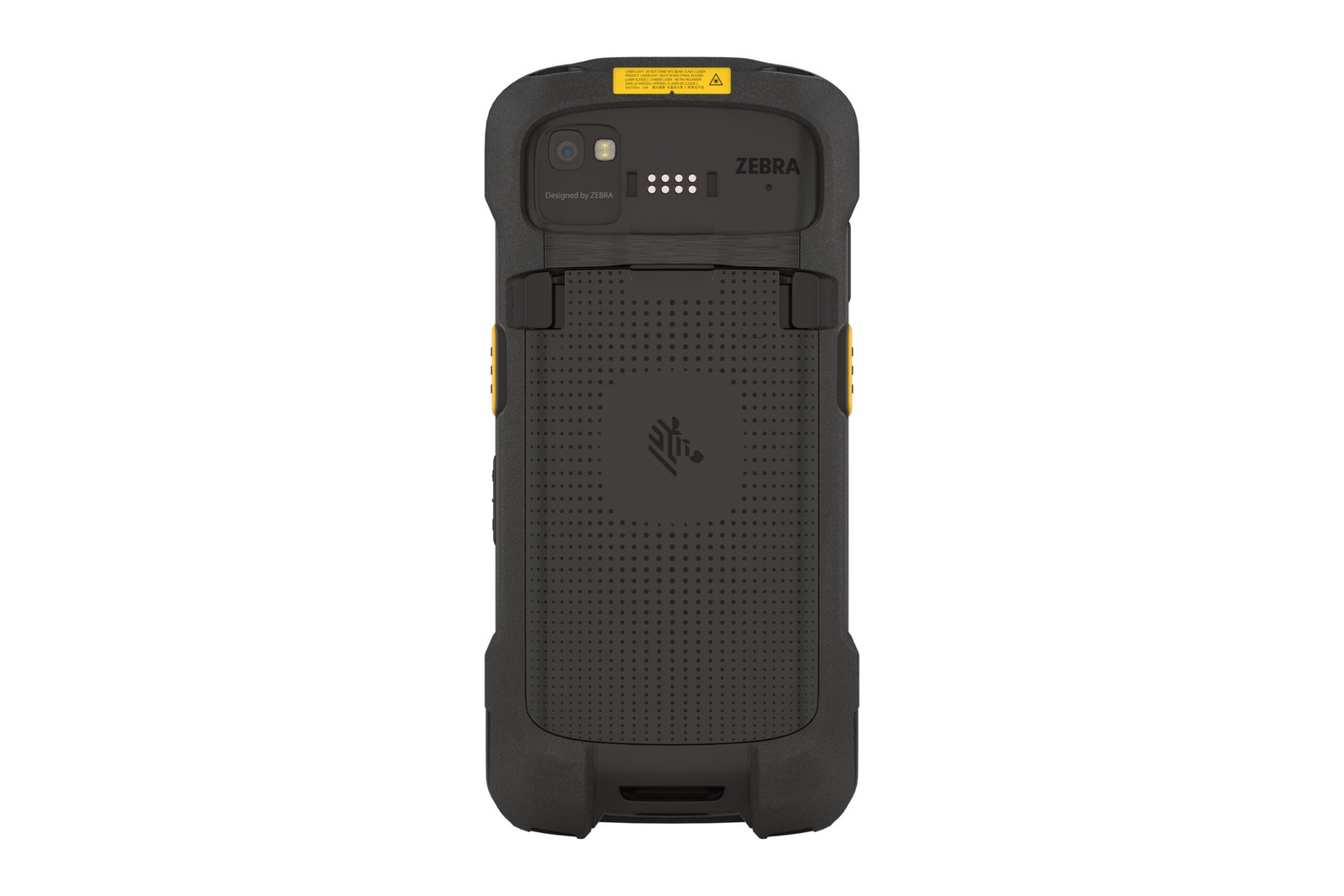

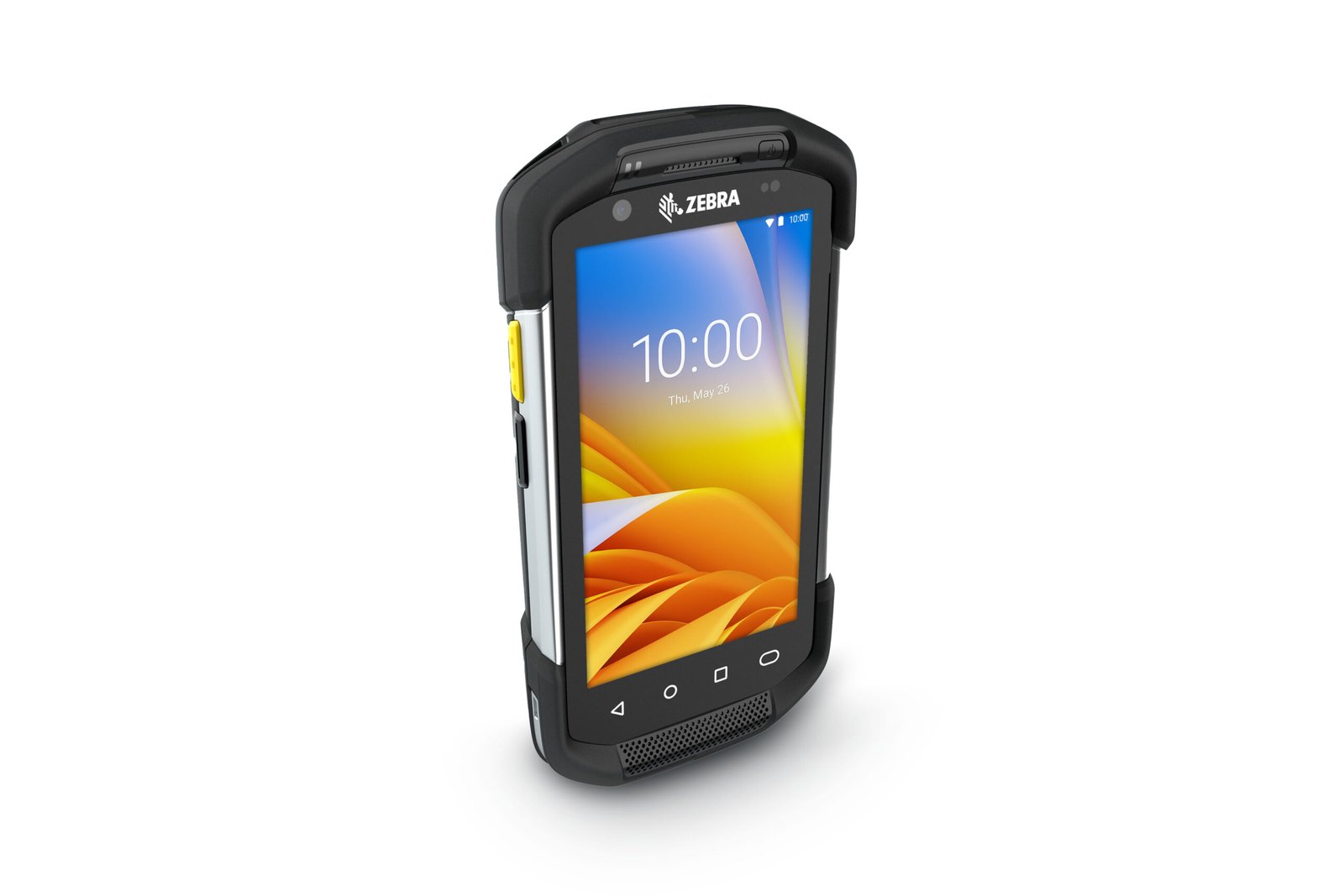

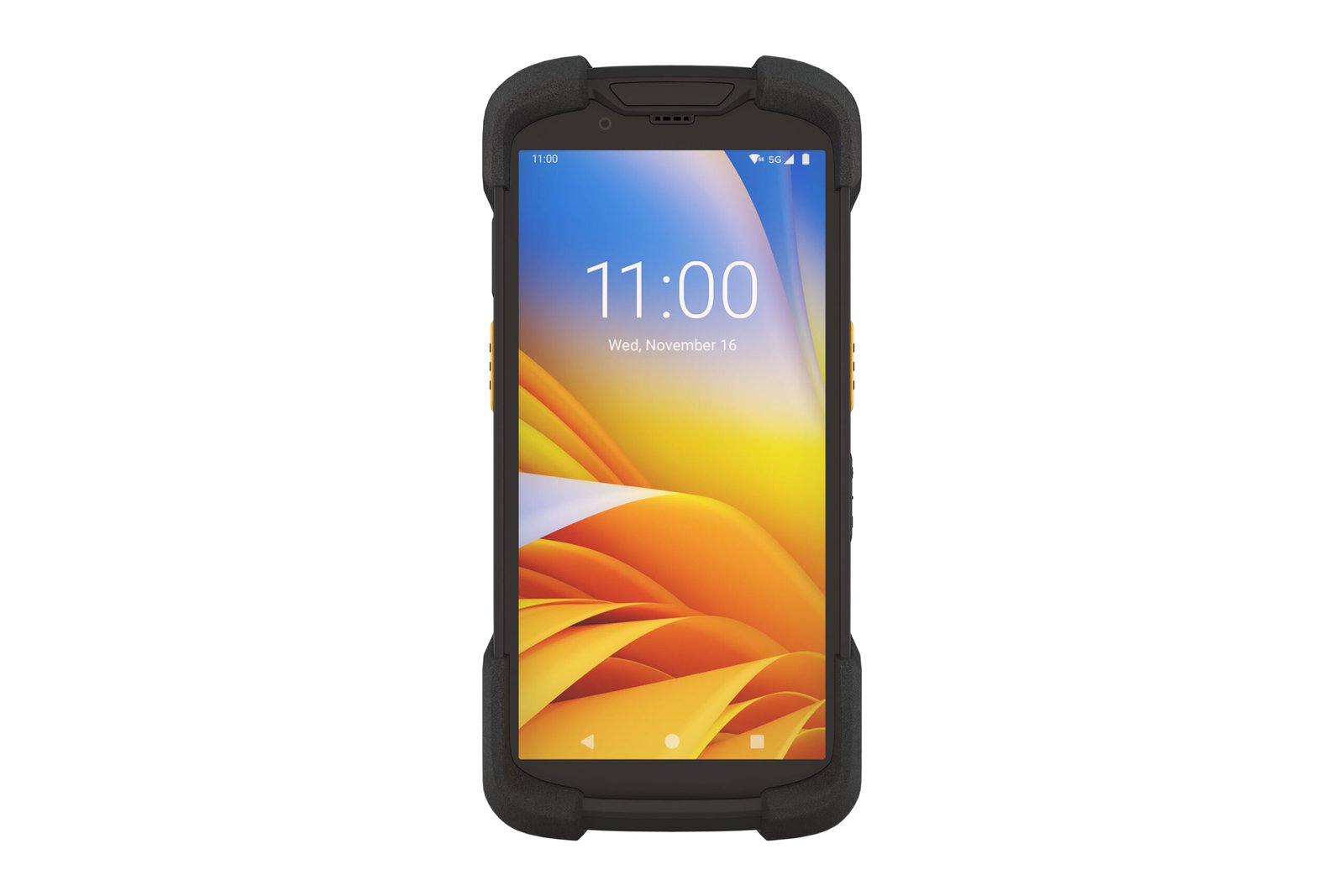

TC7X Series Mobile Computers
Models
TC73, TC78, TC72, TC77
The Ultra-Rugged Handheld Mobile Computers Re-Imagined for the New Age of Mobility
When you need the ultimate in rugged design and performance for the most demanding environments, the TC7X Series delivers. All models are loaded with features that maximize process efficiency, workforce productivity, and worker comfort — the top-of-the-line Wi-Fi 6E TC73 and Wi-Fi 6E/5G TC78 with all the latest mobility technologies and the fully-featured Wi-Fi 5 TC72 and Wi-Fi 5/4G TC77.
Description
Specifications
Physical Characteristics
| Dimensions | 6.96 in. L x 3.38 in. W x 1.12 in. H/176.8 mm L x 85.8 mm W x 28.4 mm H; Grip area: 3.179 in. W x 0.80 in. H/80.75 mm W x 20.3 mm H |
| Weight | 12.3 oz./349 g with standard battery |
| Display | 6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel |
| Imager Window | Corning™ Gorilla™ Glass |
| Touch Panel | Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning™ Gorilla™ Glass; Water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4680 mAh (18.01 Watt hours); Extended Capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging, Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs) |
| Expansion Slot | User accessible MicroSD card supports up to 2 TB |
| SIM | TC78 only: 1 Nano SIM and 1 eSIM |
| Network Connections | TC73: WLAN, WPAN (Bluetooth); TC78: WWAN 5G |
| Notifications | Audible tone; multi-color LEDs; haptic feedback |
| Keypad | On-screen keypad and Zebra enterprise keyboard |
| Voice and Audio | Built-in microphones for noise suppression and stereo record; vibrate alert; Dual speakers for loudness; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; High quality stereophonic speaker phone; Cellular Circuit Switch voice; HD voice; VoLTE EVS; VoIP incl. SWB Audio |
| Buttons | Programmable buttons for maximum flexibility: dual dedicated scan buttons; dedicated push-to-talk button; volume up/down buttons and Trigger button of Trigger Handle via Back I/O |
| Interface Ports | USB 2.0 (Back I/O — Host Only), USB 3.0 (Bottom Type C) — Super Speed (Host and Client) |
Performance Characteristics
| CPU | Qualcomm 6490 octa-core, 2.7 GHz |
| Operating System | Android; for supported Android versions, visit: |
| Memory | 4 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash |
| Security | FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request. Supports Secure Boot and Verified Boot |
User Environment
| Operating Temperature | -4° F to 122° F/-20° C to 50° C |
| Storage Temperature | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | Multiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H Multiple 8 ft./2.4 m drops to concrete over operating temp -20° C to 50° C per MIL-STD 810H |
| Tumble Specification | 2000 3.3 ft./1.0 m tumbles, meets or exceeds IEC tumble specification |
| Sealing | IP65 and IP68 with battery per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/- 15 kVdc air discharge; +/- 8 kVdc direct discharge; +/- 8 kVdc indirect discharge |
Automated Interactive Sensor Technology (IST)
| Light Sensor | Adjusts display backlight brightness |
| Magnetometer | Detects direction and orientation |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Pressure Sensor | Detects altitude information for locating |
| Proximity Sensor | Detects when the user places the handset against head during a phone call to disable display output and touch input |
| Gyro | Senses linear orientation |
General Certifications
| TAA compliant; ARCore Google certification sustained |
Data Capture
| Scanning | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine |
| Camera | Front — 8 MP; Rear — 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only); Time of Flight (ToF) Sensor (premium SKUs only) |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
Wireless WAN Data and Voice Communications (TC78 only)
| Radio Frequency Band | North America: 5G FR1: n2, 5, 7, 12, 13, 14, 25, 26, 29, 38, 41, 48, 66, 71, 77, 78; 4G: B2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 38, 41, 48, 66, 71; 3G: B2, 4, 5; 2G: 850, 1900; Rest of World: 5G FR1: n1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 71, 77, 78; 4G: B1, 2, 3, 4, 5, 7, 8, 17, 20, 28, 38 ,39, 40, 41, 42, 43, 66, 71; 3G: 1, 2, 3, 4, 5, 8; 2G: 850, 900, 1800, 1900; China/Japan: 5G FR1: n1, 3 ,5, 8, 38, 40, 41, 77, 78, 79; 4G: B1, 3, 5, 7, 8, 19, 34, 38, 39, 40, 41, 42; 3G: B1, 5, 8 ,19; 2G: 850, 900, 1800 Supports private networking (LTE/5G) Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details. |
| GPS | GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS including TSPEC |
