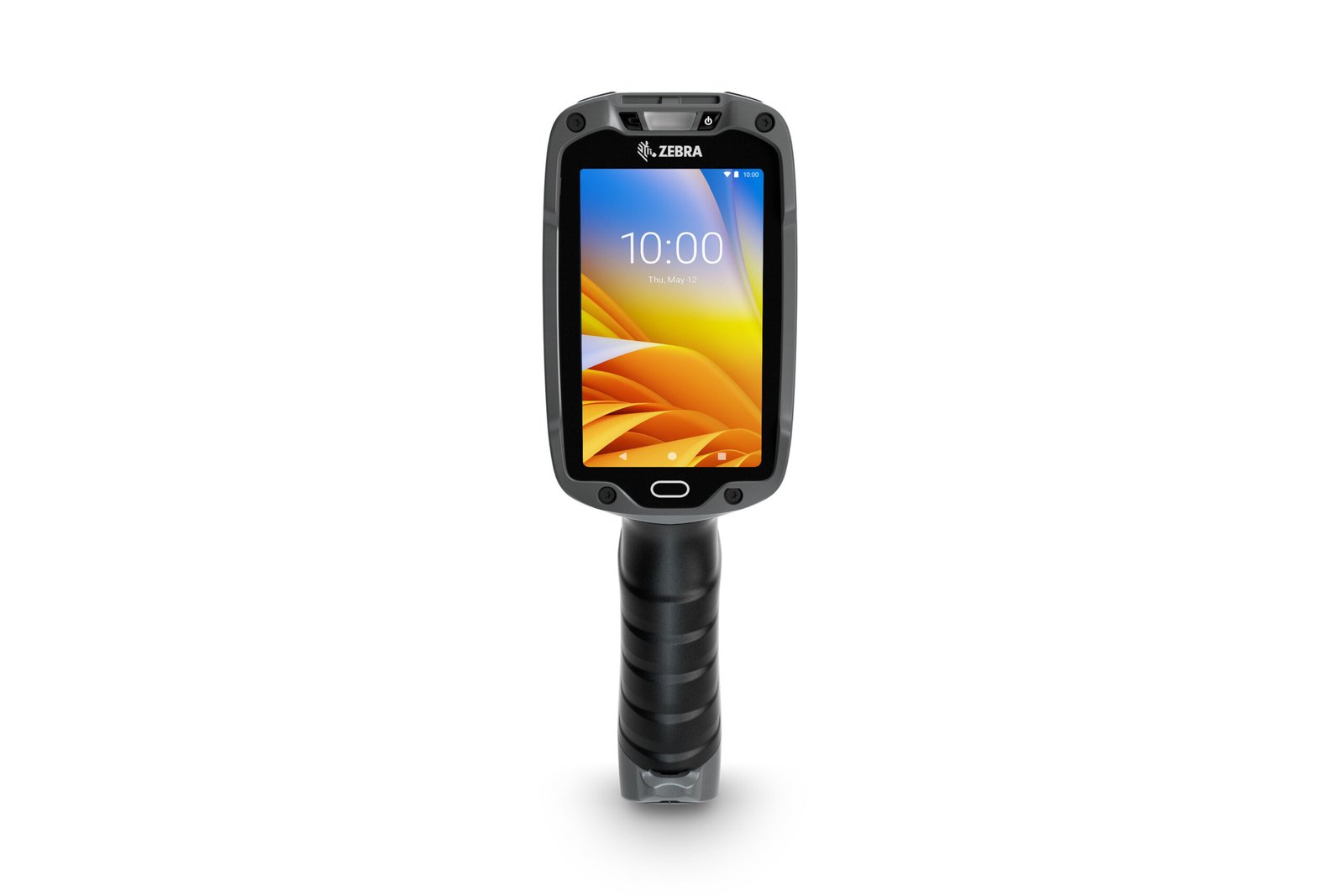

TC8300 Touch Computer
Models
TC8300
Specifications
Physical Characteristics
| Dimensions | 9.17 in. L x 2.99 in. W x 2.52 in. D 233 mm L x 76 mm W x 64 mm D |
| Weight | Base: 17.2 oz./490 g; Package 1: 17.6 oz./500 g |
| Display | 800 x 480 pixels; 4.0 in. diagonal; transflective LCD display; 16.7 Million (24-bit) color support; 400 NITs |
| Touch Panel | Multi-touch projected capacitive; fingertip (bare or gloved) input; conductive stylus supported (sold separately); Corning® Gorilla® Glass |
| Power | PowerPrecision+ Lithium ion 7000 mAh with hot swap battery backup |
| Notifications | Audible tone, multi-color LEDs, vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Dual speakers, Bluetooth wireless headset support |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | Base, Condensation Resistant, DPM and Package 1 models: 4 GB RAM/32 GB Flash pSLC |
| Storage | SDXC compliant micro SD card slot |
| App Development | EMDK available through Zebra Support Central Web site |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% – 95% non condensing (condensing resistant optional) |
| Drop Spec. | Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G ; multiple 6 ft./1.8 m drop to concrete across full operating temperature range |
| Tumble Spec. | 2,000 3.3 ft./1 m tumbles |
| Sealing | IP65 |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz) |
| Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition |
| Scanner Window | Corning® Gorilla® Glass |
| Electrostatic Discharge (ESD) | ±20kVdc air discharge; ±10kVdc direct discharge; ±10kVdc indirect discharge |
Data Capture
| Scanning Options | SE4750: 1D/2D medium range omnidirectional imager SE4770: 1D/2D standard range omnidirectional imager SE4750 DPM: Direct Part Mark (DPM) imager SE4850: 1D/2D extended range imager |
| Camera | 13 MP rear facing autofocus, f/2.4 aperture (optional) |
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support (optional) |
Zebra Interactive Sensor Technology
| Light Sensor | Automatically adjusts display backlight |
| Motion Sensor | 3-axis accelerometer, 3-axis gyroscope |
| Proximity | Sensor for automatic hands-free scanning; magnetic sensor to detect insertion in a cart mount or holster |
Wireless LAN
| Radio | IEEE 802.11a/b/g/n/ac/d/h/i/r/k/w; 2×2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Chan 36 – 165 (5180 – 5825 MHz); Chan 1 – 13 (2412 – 2472 MHz); Actual operating channels/frequencies depend on regulatory rules and certification agency |
| Security and Encryption | WEP, WPA – TKIP, WPA2- TKIP, WPA2-TKIP AES EAP TTLS, PAP, MSCHAP, MSCHAP v2, PEAPv0-MSCHAPv2, PEAPv1- EAP-GTC, EAP-TLS, EAP-FAST, LEAP, FIPS 140-2 Level 1: Data in Motion and Data at Rest |
| Multimedia | Wi-Fi Multimedia™ (WMM) |
| Certifications | WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0) |
| Fast Roam | PMKID caching, Cisco CCKM, OKC, 802.11r |
| Network Connections | Bluetooth; USB 2.0 OTG Host docking interface; 802.11r and 802.11k for enterprise voice roaming included |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Device Approvals and Compliance
| TAA (optional on select configurations) | Trade Agreement Act optional on select configurations Compliant, FIPS 140-2 (DIM & DAR) support; FIPS 140-2 Level 1: Data in Motion and Data at Rest |
Environmental Compliance
| Environment • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the TC8300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. |
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.
Zebra Visibility Services — Asset Visibility Services (AVS) and Operational Visibility Service (OVS): Options on any Zebra OneCare support contract, these services deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level. |
Footnotes
| 1. Based on typical user profile
For details related to Common Criteria support, please visit: |
